Project Details - Nyati Hostel

Residential

Nyati Hostel

Toilets, balcony, terrace and podium waterproofing work.

Timeline 2 Years

Total Area 54,000 Sqft

Budget 10 Million INR

Buildings Three (A, B, C)

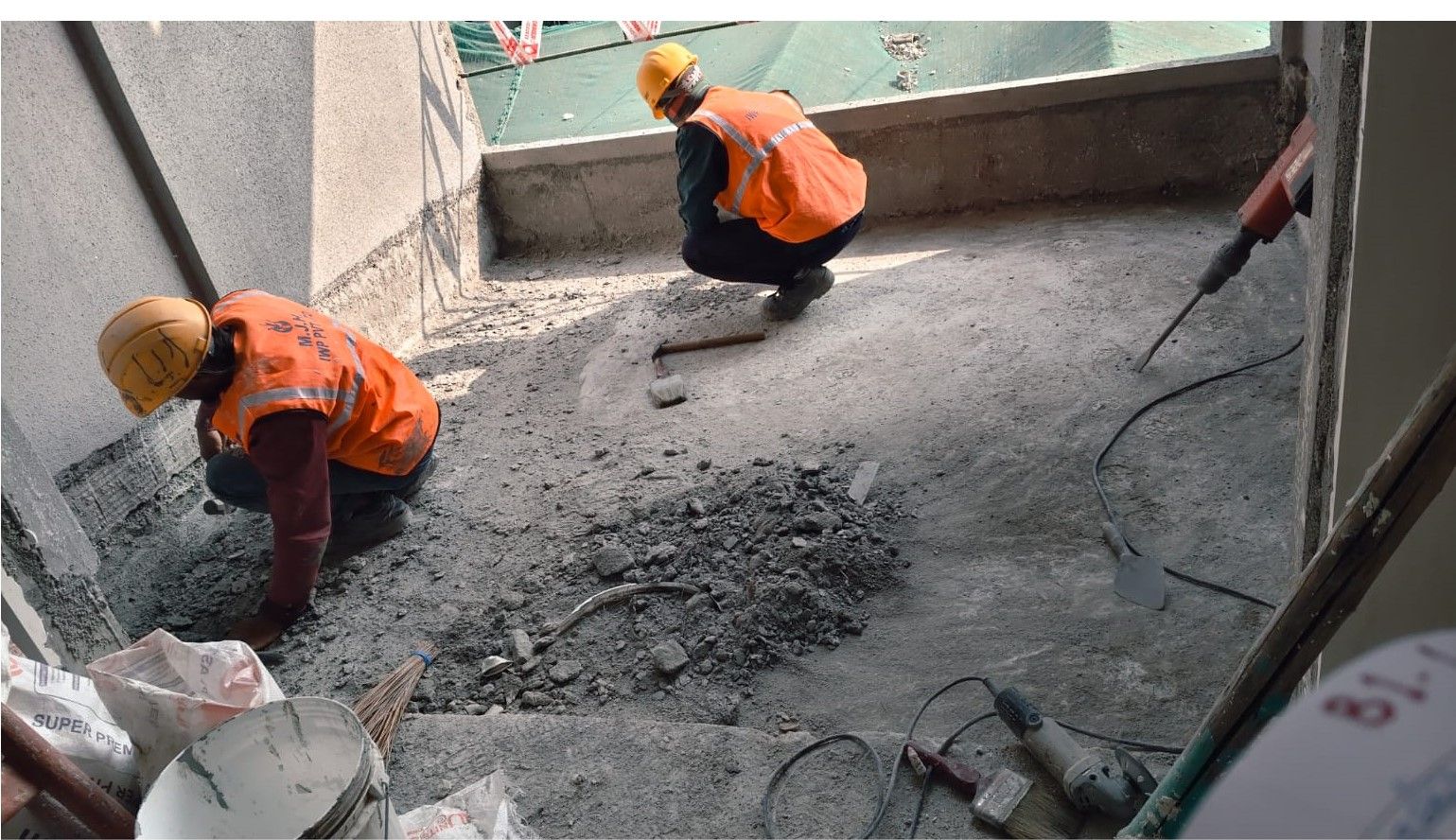

Step 1: Surface Preparation

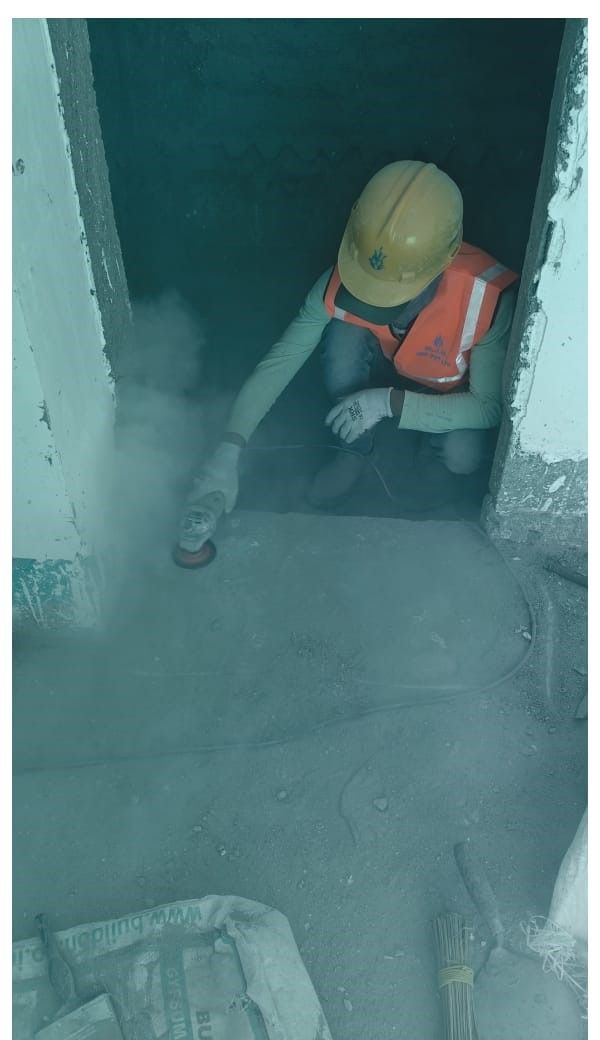

Step 2: Grinding

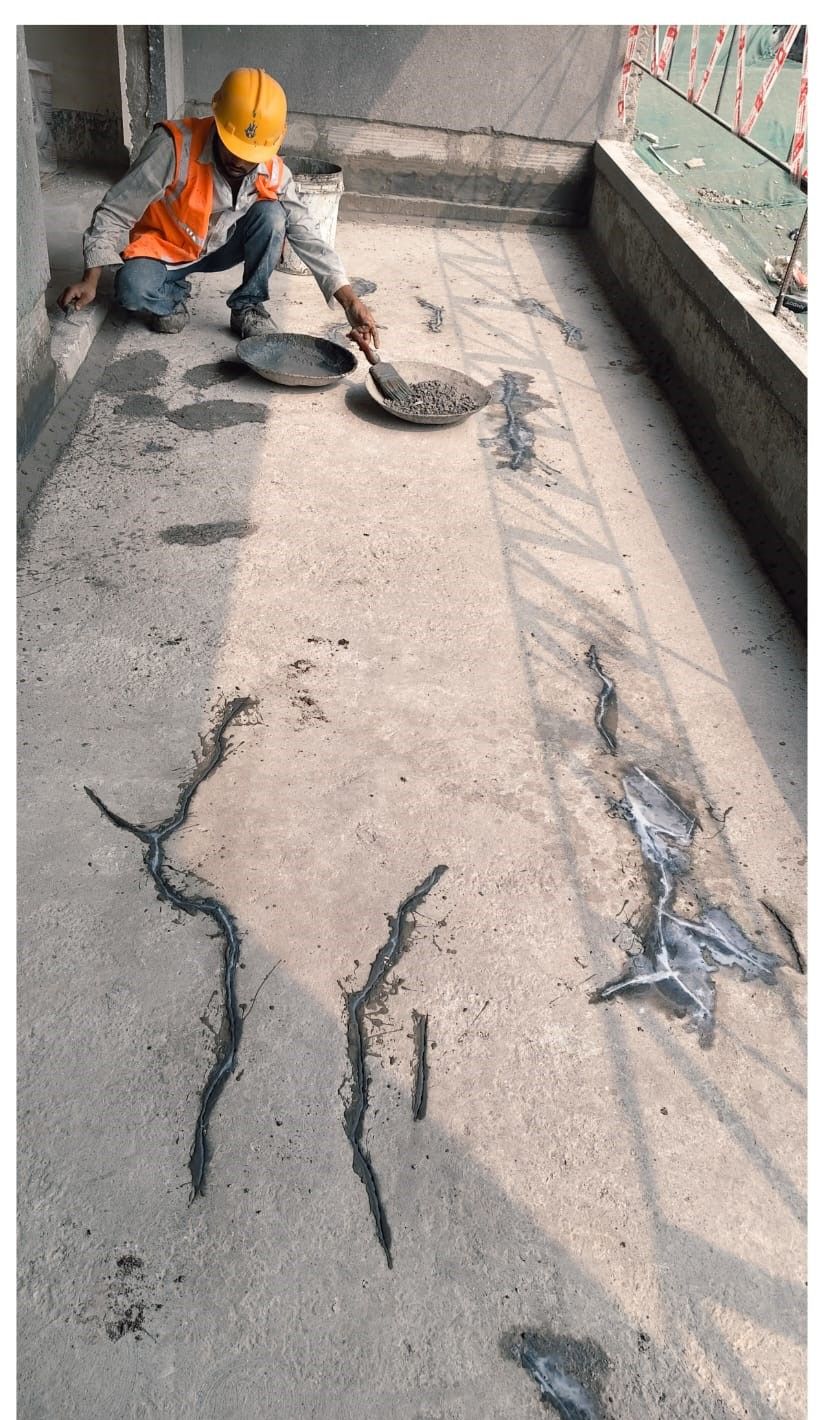

Step 3: Crack Opening

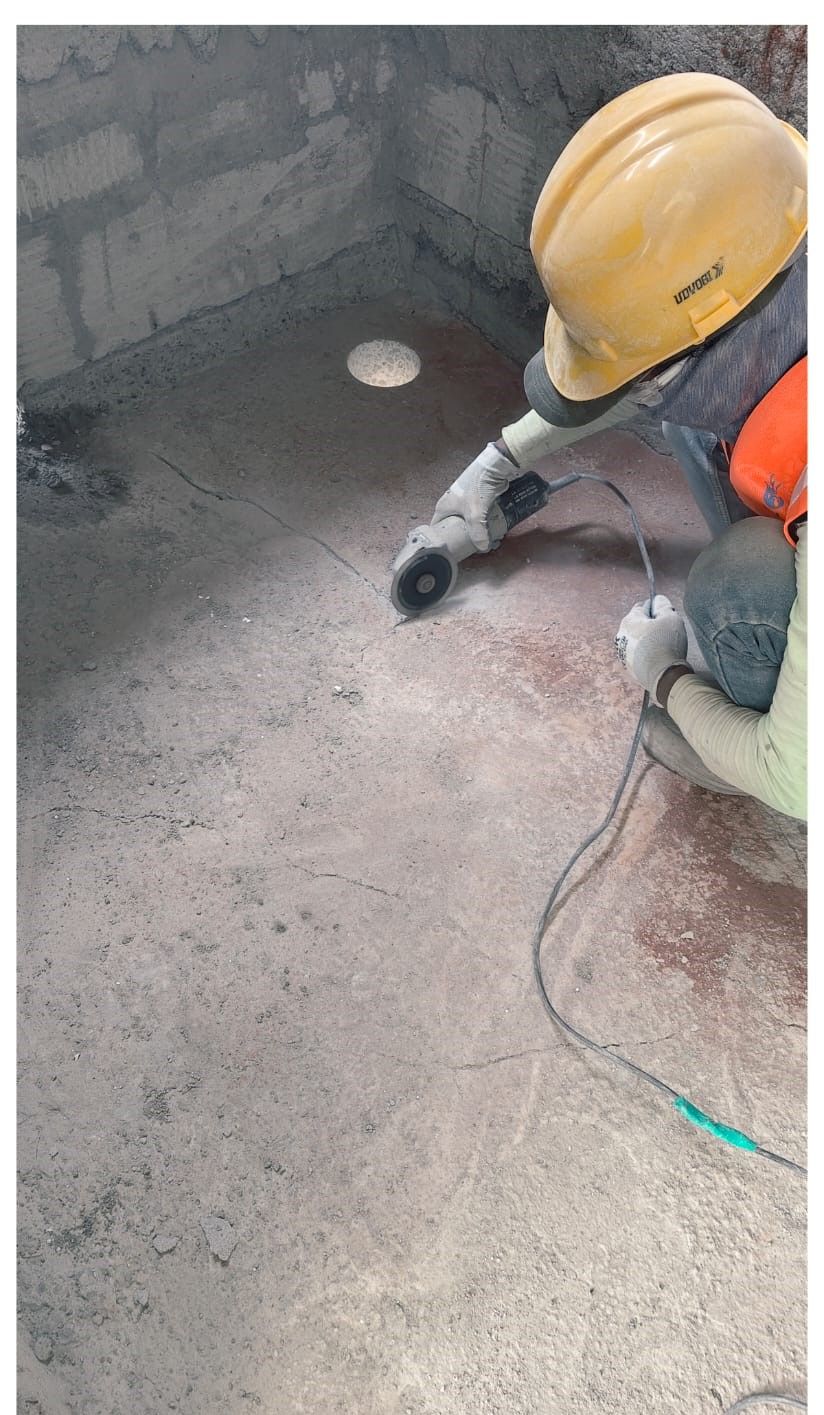

Step 3.1: Crack Filling

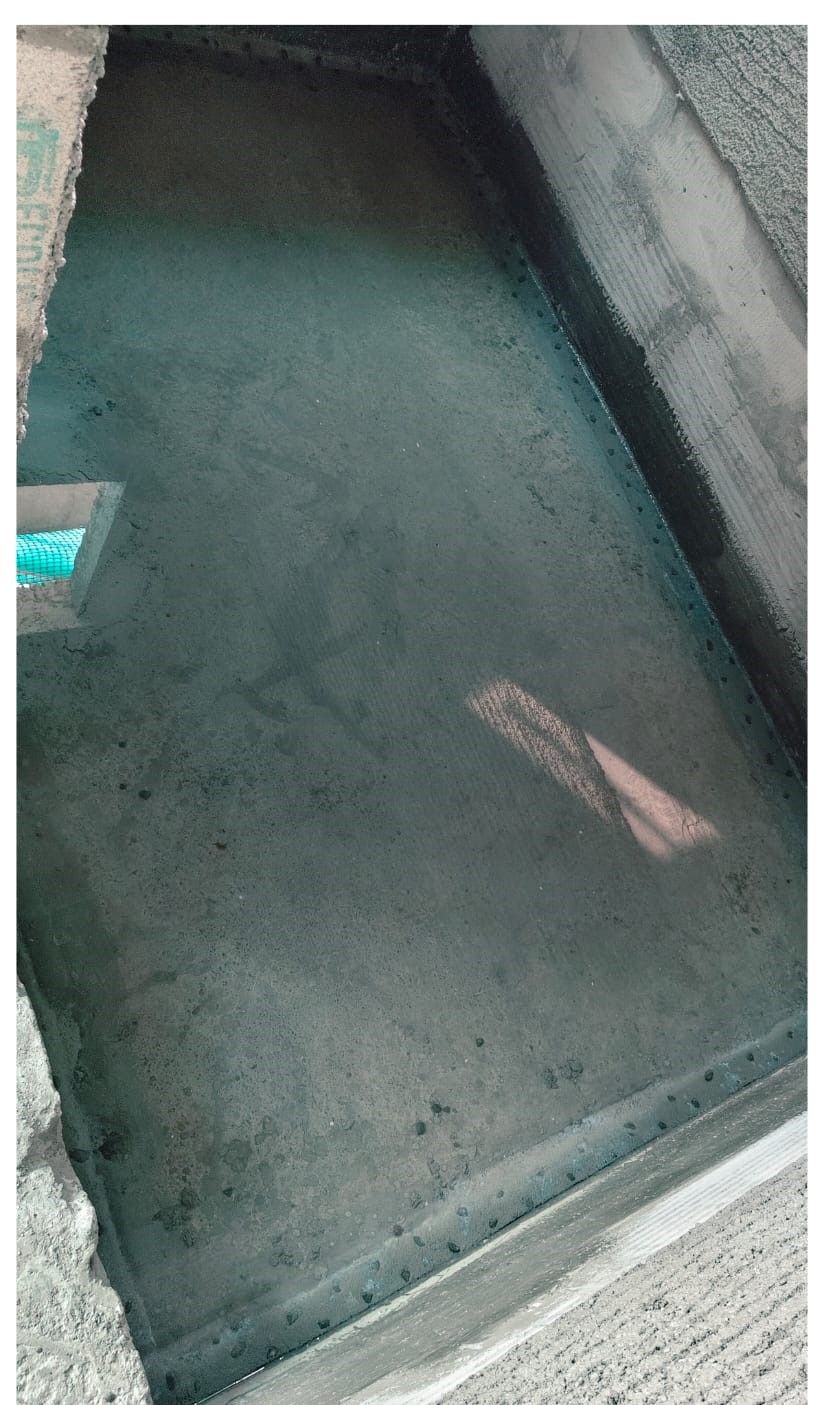

Step 4: Angle Fillet

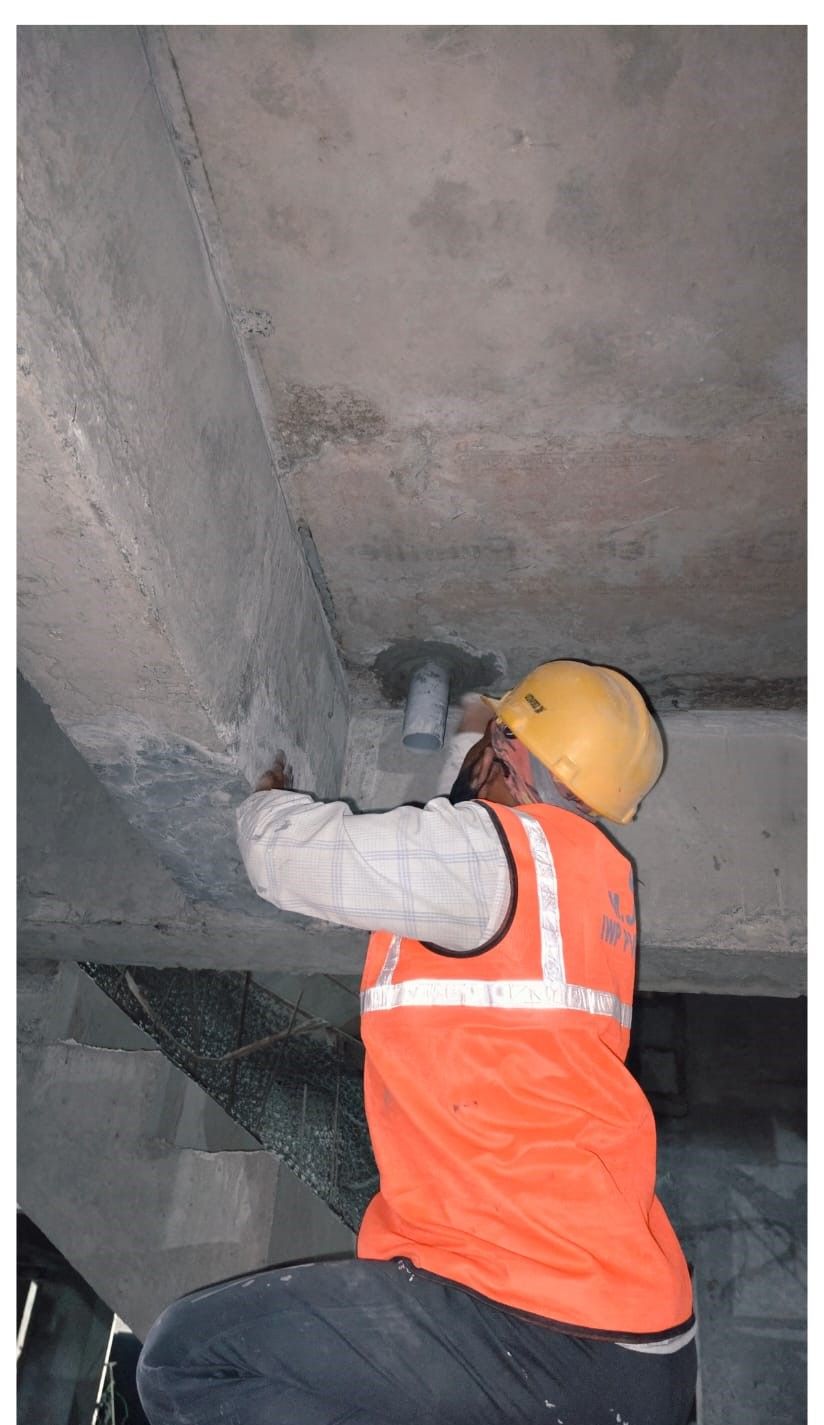

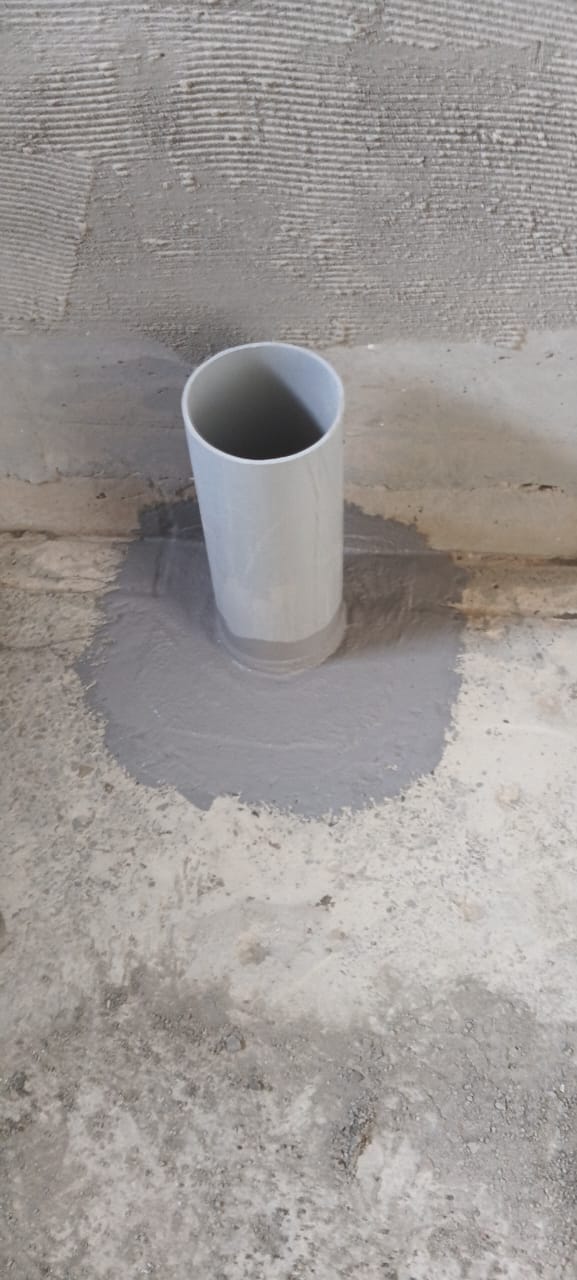

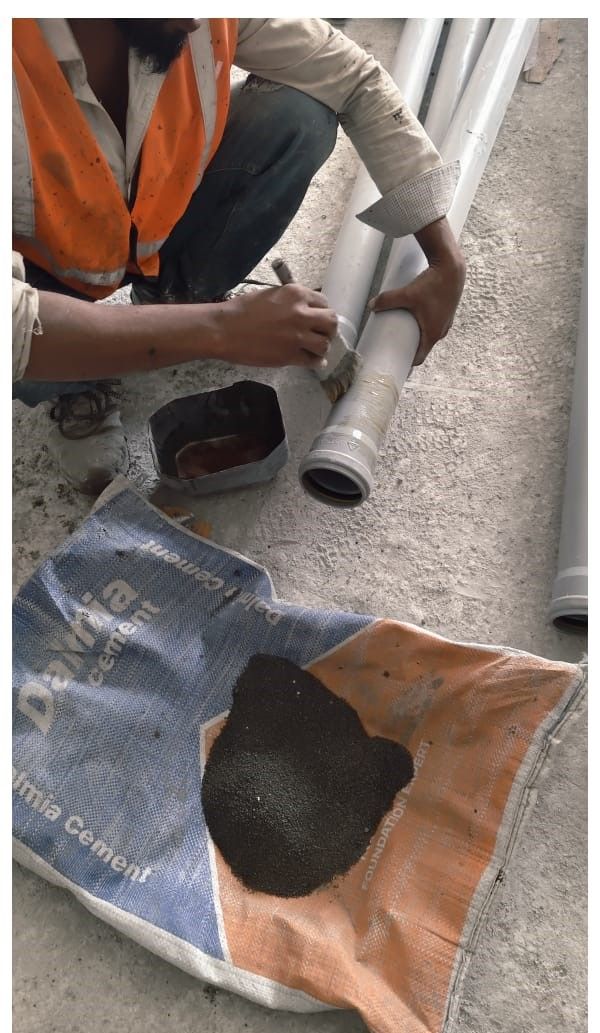

Step 5: Pipe Packing (1/3)

Step 5: Pipe Packing (2/3)

Step 5: Pipe Packing (3/3)

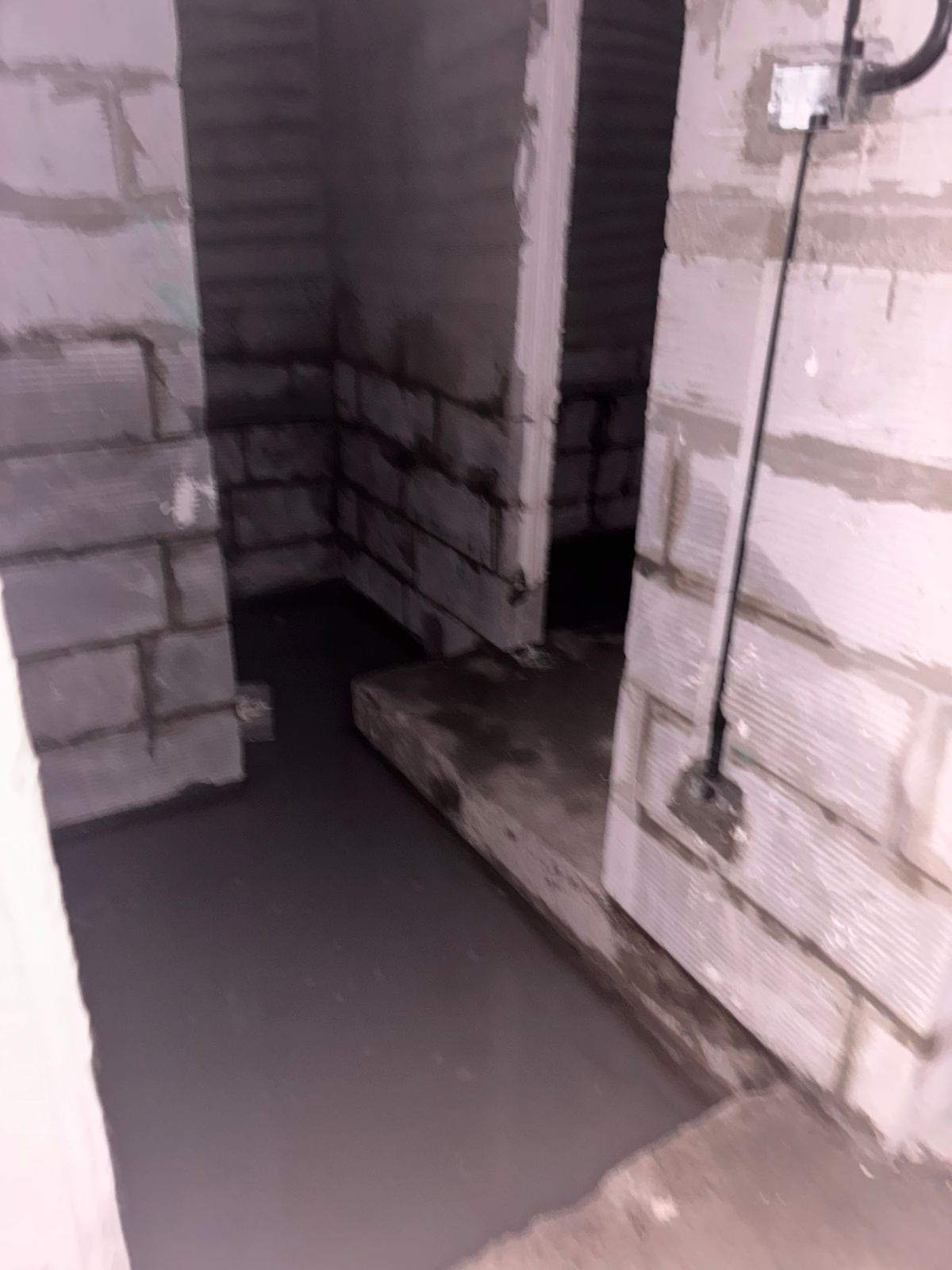

Step 6: Pre Pond Test

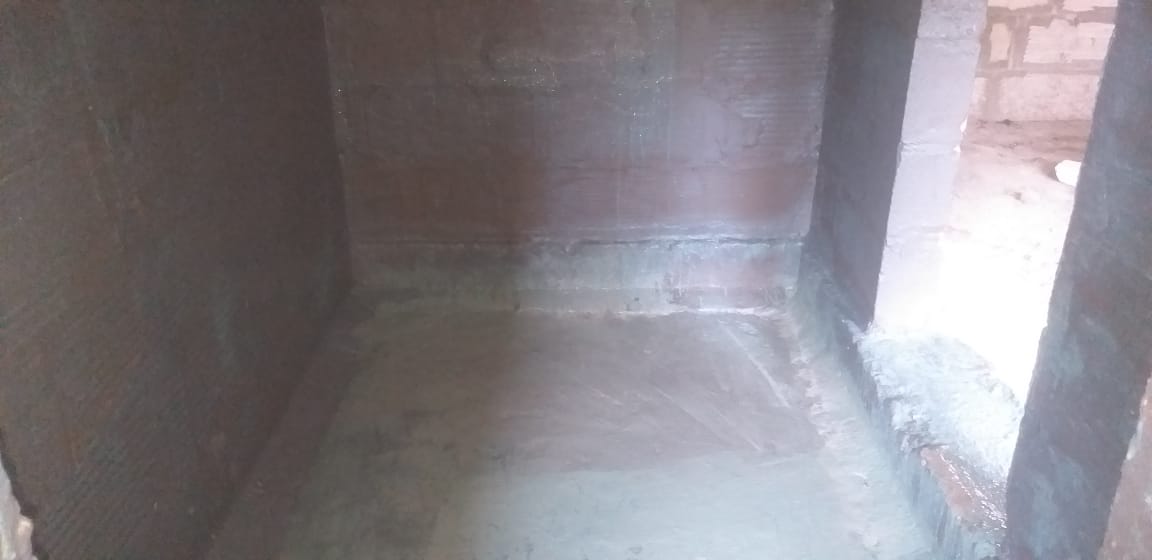

Step 7: Chemical Primer Coat

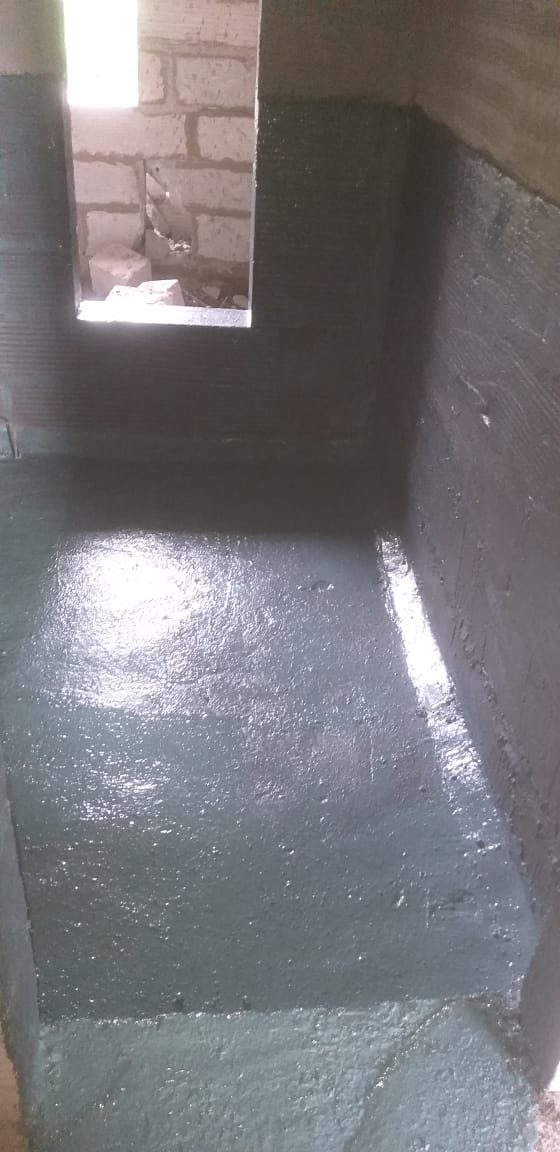

Step 8: Chemical Final Coat

Step 9: Base Coat

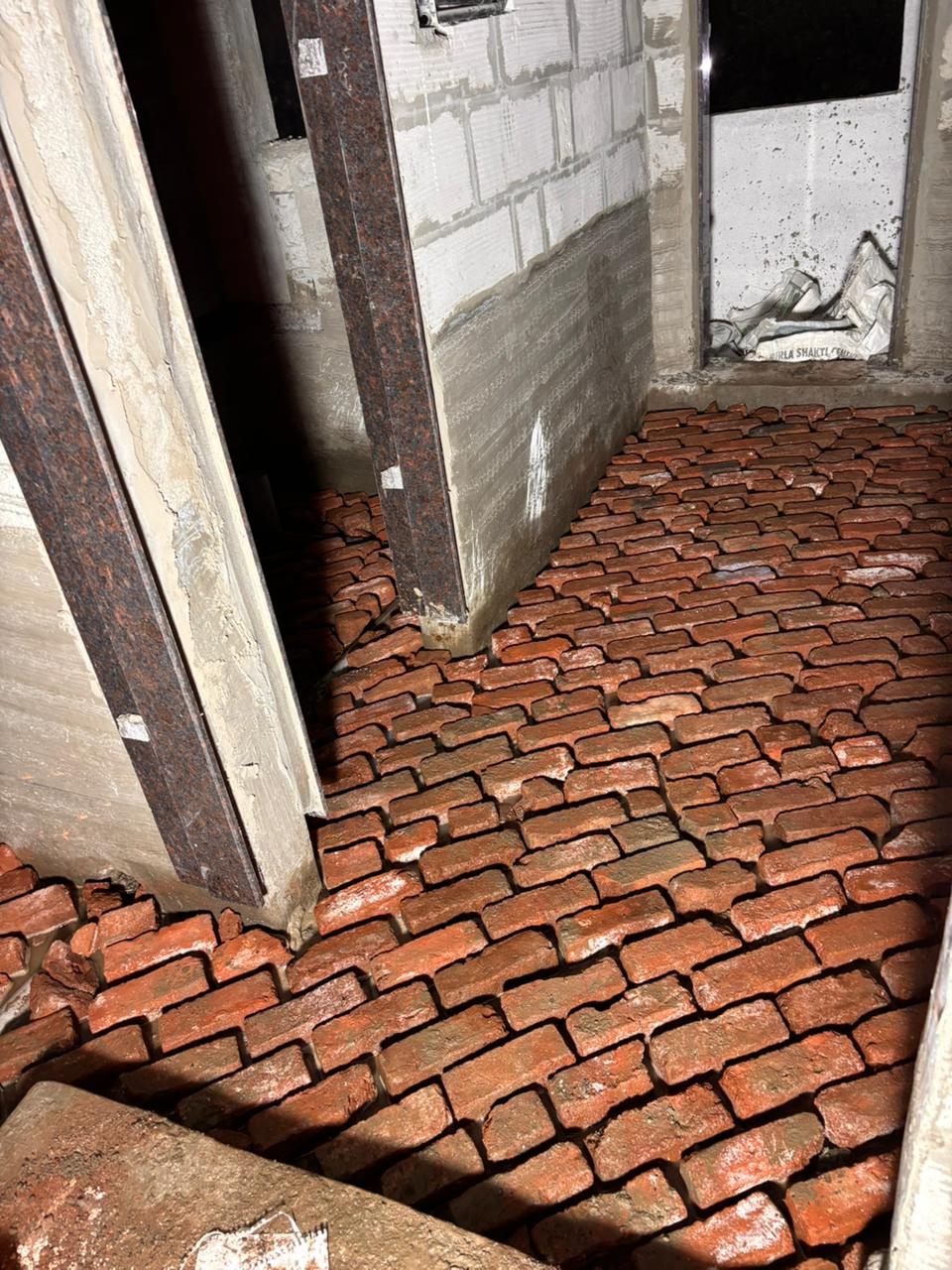

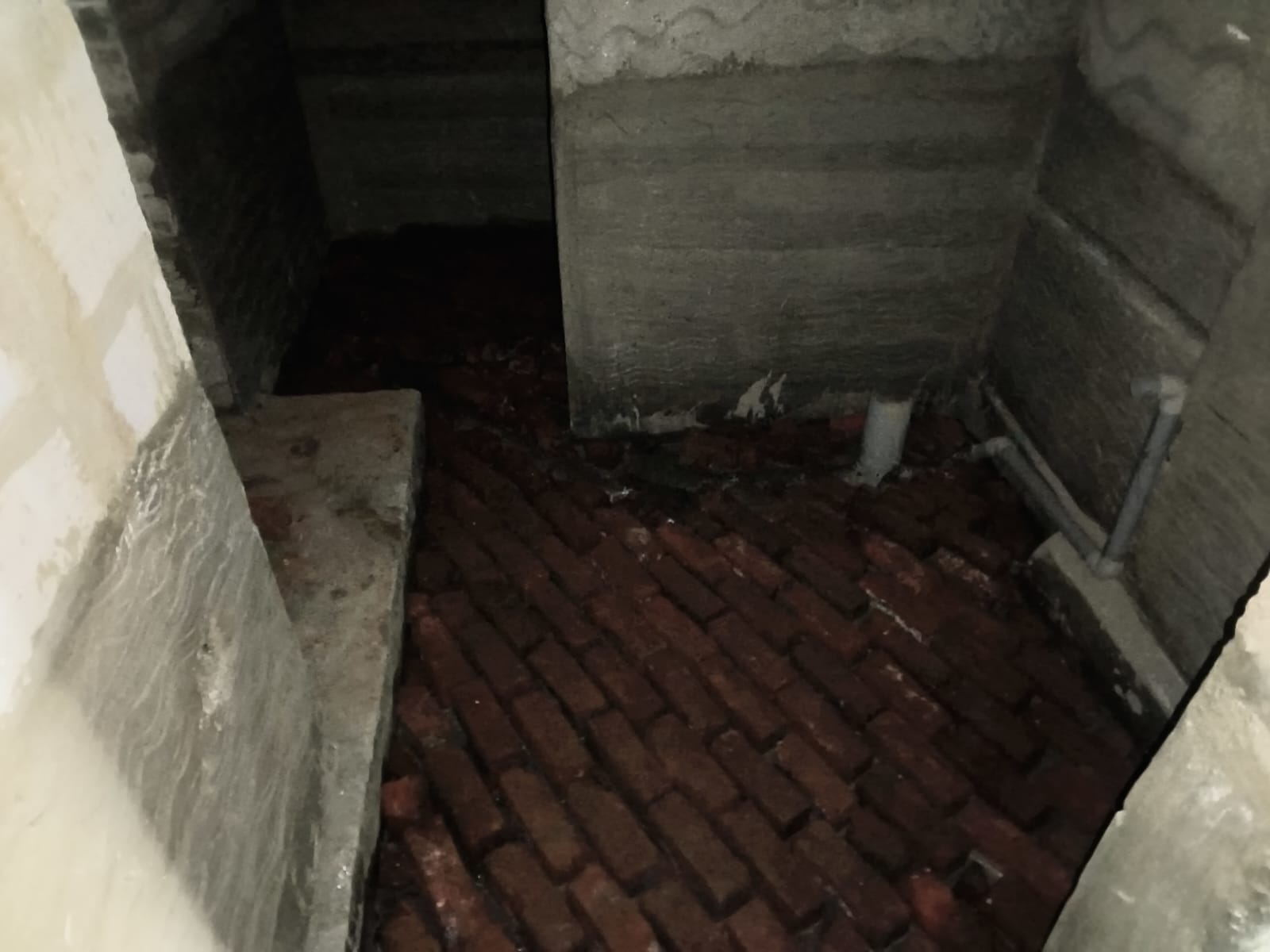

Step 10: Brick Bat (1/2)

Step 10: Brick Bat (2/2)

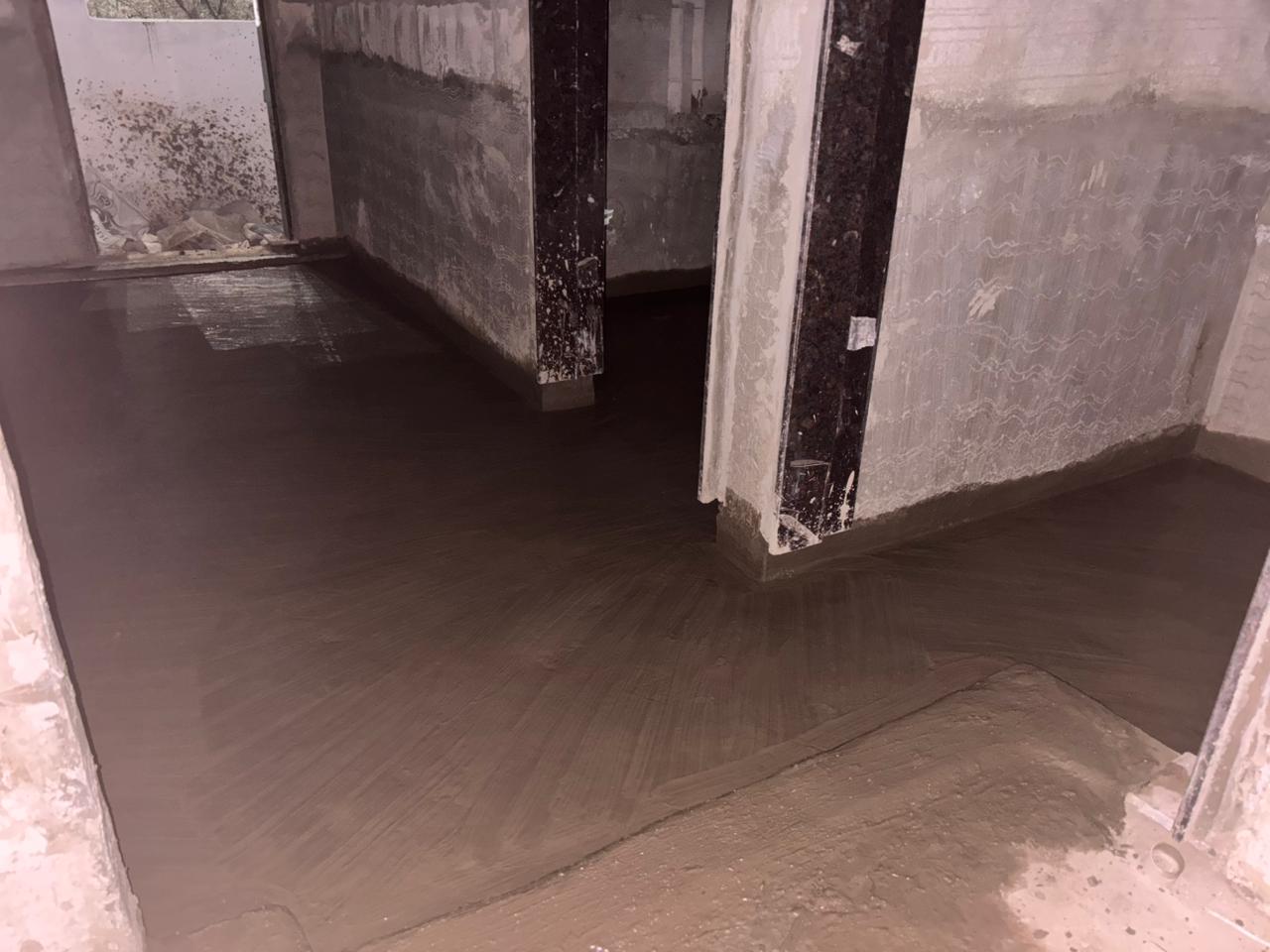

Step 11: Brick Bat Finishing

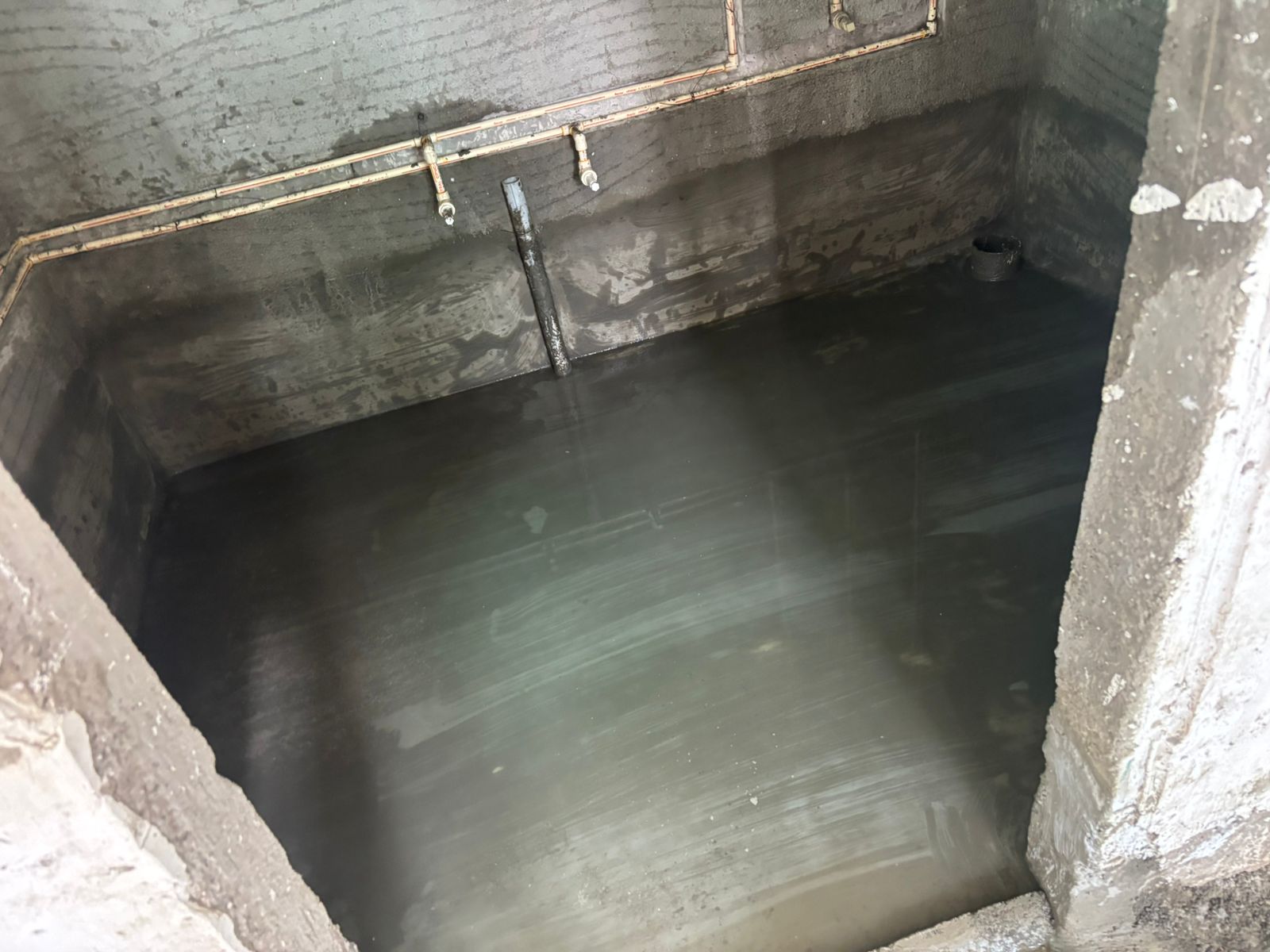

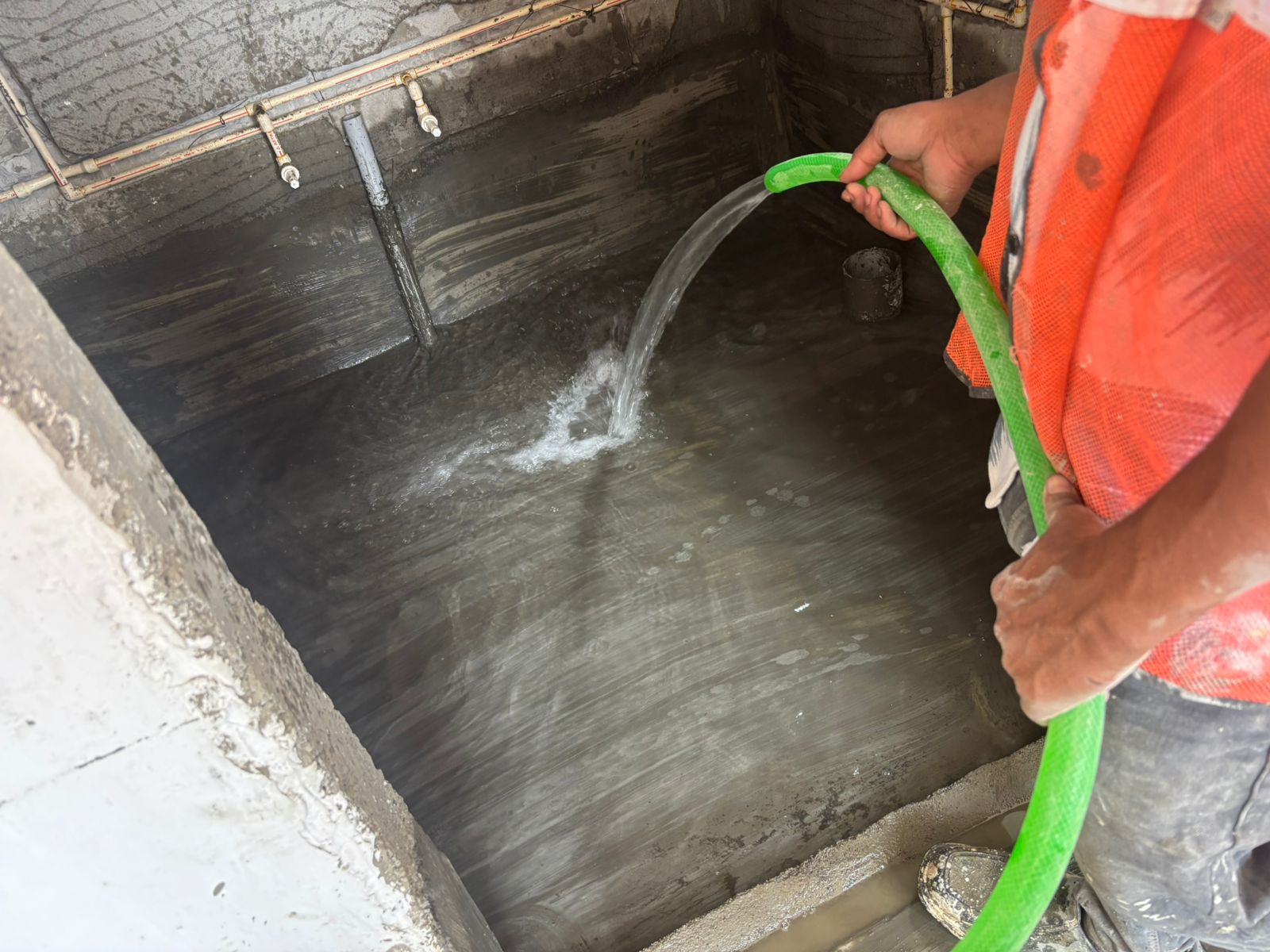

Step 12: Post Pond Test (1/2)

Step 12: Post Pond Test (2/2)

Project Execution

Honeycombing Treatment:

Remove loose concrete using hacking hammer.
Clean surface thoroughly.
Apply bond coat using Dr. Fixit Pidicrete URP mixed with cement (1:1.5 ratio).
While tacky, repair honeycombing using polymer modified mortar (URP + cement + sand in 1:5:15 ratio).

Waterproofing Application (Dr. Fixit Fastflex 2K):

Apply in two coats.
Pre-wet surface and bring to touch dry condition.
Apply first coat using nylon brush and fill all undulations.
Apply second coat perpendicular to first.
Before drying, spread fine sand over the surface.

Key Achievements

Innovative Solutions

Using advanced waterproofing techniques and premium materials (Dr. Fixit) to ensure long-term, flawless protection.

Safety Excellence

Adhering to strict safety standards to protect our workers and your property during all execution phases.

Steady Progress

Maintaining a disciplined project timeline to meet the expected completion date while preserving impeccable quality.

Project Specifications

Building Type Residential

Construction Method Reinforced Concrete

Project Scope Toilets, Balcony, Terrace, Podium

Buildings Count 3 (A, B, C)

Waterproofing Dr. Fixit Fastflex 2K

Start Date 26-08-2024

Expected Completion 01-01-2027

Project Progress 50%

Technical Documentation

Comprehensive visual documentation of construction phases and technical implementations

Crack Opening Analysis

Pre Pond Waterproofing Test

Post Pond Final Verification
